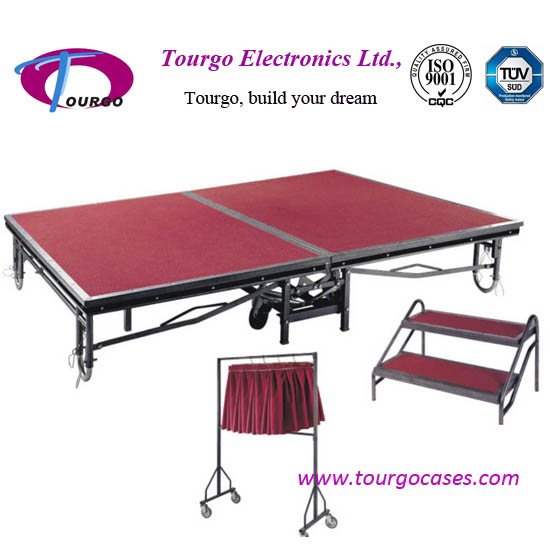

Tourgo Folding Stage
Tourgo Folding Stage :We also called Moving Stage ,Folding Stage with wheels ,
Stage with wheels ,Hotel Special Stage ,Portable Stage.
1.Application :
Folding Stage for its adjustable height and foldable with wheels,which is the most
convenient stage equipments currently ,.It is mainly used in hotel Restaurant,Supermarket
,auditorium ,News Conference events and so on .
2,Feature:
1).Foldable &Movable
2).Adjustable Height
3).Good Outlook
4).Easy to use and carry
5).High Load-bearing
3.Specification:
1).Standard size :1.22m*1.22m ;1.22m*2.44m; 1.83m*2.44m
2).Standard Height:Adjustable 40m-60cm-80cm
3).Load-Bearing:above 400kg/sqm
Noted:The others sizes and height also can be customized.
4.Materials:
1).The Folding Stage Platform :
a,The Stage Platform are made of 18mm high-density plywood;
b,The surface are made with 5mm fireproofing fiber Carpet( The colors can be customized);
c, The frame of platform are made of 1.6mm section bar
1).Folding Stage Supports:
a,The mesa framework are made of 50*50*5mm angle steel ,stable and riqid,all of the metal supports after
anti-rust pre-treament ,then spraying and over the electrostatic spraying;
b.Subject Supports are made of 30*30*1.5mm square steel ;
c,Activities connectors are made of 5mm flat steel
2).Surface Treatment:
a,Oil Degrease processing (Make steel pipe surface oily be soiled ,impurity off );
b,Steel phosphating(Make steel pipe surface formation rusty layer, increase surface spray strength);
c,Surface coating, over high-temperature baking
5.Details Display:
1).Size: 1.22*2.44m ,height 40cm ;After being folded ,the size :1.45m*1.25m*0.45m
2).Size:1.83m*2.44m ,height 40cm ;After being folded ,the size :1.45m*1.86m*0.45m
For any other size also can be custom-made .
